DX51D+Z · 08ps · Z100–Z275 · t 0.3–3 · 1 250×2 500 · GOST 14918

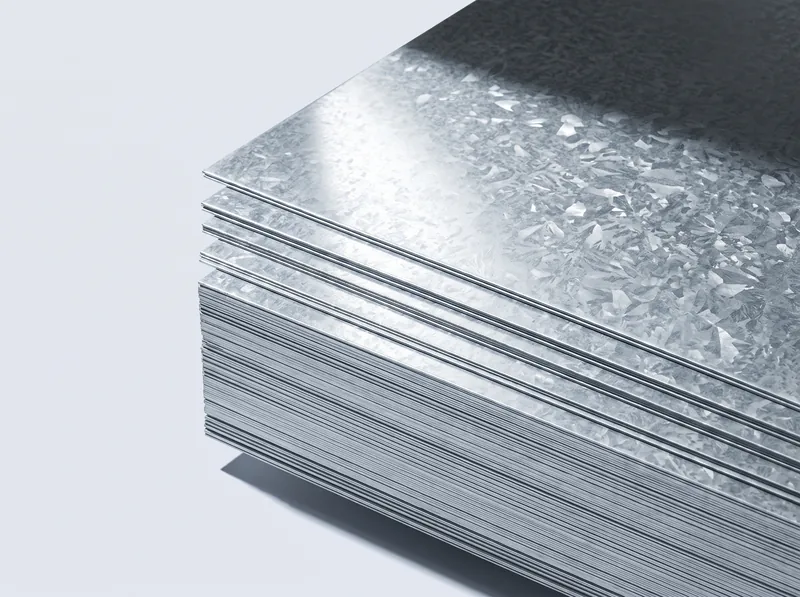

Galvanized sheet DX51D+Z
Cold-rolled sheet with hot-dip zinc coating for ventilation, profiles, roofing and enclosures
PPGI · DX51D+Z · RAL · PE / PVDF · t 0.3–1.2 · 1 250×2 500 · GOST 34180

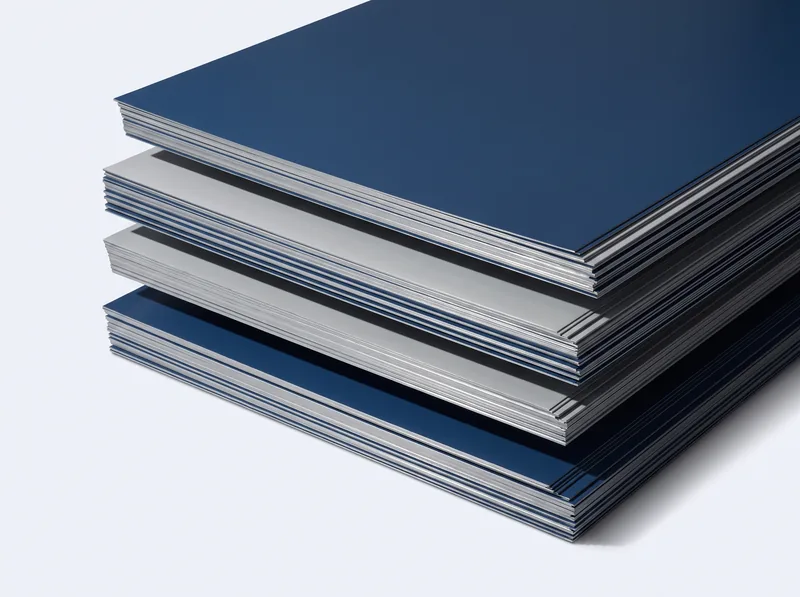

Pre-painted sheet PPGI
Galvanized sheet with a paint coating to the RAL catalogue for roofing, facades, sandwich panels and enclosures
GOST 34180-2017GOST 14918-2020GB/T 12754-2019GB/T 2518-2019EN 10169:2010EN 10346:2015ASTM A755/A755MDX51D+ZTDC51D+Z08ps
Parameters
| Parameters | |
|---|---|
| Thickness | 0.3–1.2 mm coated |
| Width | 1 000, 1 250 mm |
| Length | 2 000, 2 500, 3 000 mm; fixed length — to specification |
| Substrate | DX51D+Z, zinc Z100–Z275 g/m² |
| Polymer | polyester (PE), matte polyester, polyurethane (PUR), PVDF |
| Colour | per RAL catalogue; sample approved before ordering |
| Protective film | on the face side — to specification |
Sizes and weight
| t, mm | Weight, kg/m² | Sheet 1 500×6 000, kg |
|---|---|---|
| 0.3 | 2.36 | 21.2 |
| 0.35 | 2.75 | 24.7 |
| 0.4 | 3.14 | 28.3 |
| 0.45 | 3.53 | 31.8 |
| 0.5 | 3.93 | 35.3 |
| 0.6 | 4.71 | 42.4 |
| 0.7 | 5.49 | 49.5 |
| 0.8 | 6.28 | 56.5 |
| 1 | 7.85 | 70.6 |
| 1.2 | 9.42 | 84.8 |
Theoretical weight at steel density 7.85 g/cm³. Actual batch weight is by scale and mill certificate.
Description
Pre-painted sheet (PPGI) is a galvanized cold-rolled base on which a continuous coating line applies primer and a paint layer on the face side and a protective backing coat on the reverse; the finished coil is cut to length. Technical requirements are GOST 34180-2017, GB/T 12754-2019, EN 10169 and ASTM A755/A755M. The zinc under the paint protects the steel from corrosion, the polymer protects the zinc and gives the colour; the service life is set by both layers.
The substrate is DX51D+Z to EN 10346 or TDC51D+Z to GB/T 12754 with a zinc weight of Z100–Z275; for roofing and facades the specification usually calls for Z140 and above. The polymer type is chosen for the service conditions: polyester (PE) for most buildings, matt polyester for roofing and facades without glare, polyurethane (PUR) and PVDF for aggressive environments and long-term colour retention. The colour is set by a RAL catalogue number — RAL 9003, 3005, 6005, 8017 and others; gloss and layer thickness are fixed in the specification. The nearest GOST equivalent is sheet to GOST 34180 on an 08ps steel base.
At the mill before shipment the bureau's inspector measures sheet thickness with a micrometer, zinc and paint layer thickness with a coating gauge on the face and reverse sides, checks the colour against the RAL reference and the agreed sample, and checks adhesion and bend resistance on sample pieces by the methods of the standard. The surface is examined for missed paint, orange peel, inclusions, scratches and damage to the protective film. The mill test certificate (MTC) is checked against the pallet tag by heat number, zinc class, polymer type and thickness and RAL number. Packaging with edge protection is checked. The report with photographs is handed to you before shipment.
Applications
- roofing, facades and flashings of buildings
- facings of sandwich panels
- metal roof tiles, corrugated sheeting and siding
- enclosures of household appliances and retail equipment
- metal doors, cabinets and partitions
- fencing and gates
Packing and shipment
Pallet on a timber base: sheets with protective film, paper interleaving, steel corner protectors on the edges, wrapped in moisture-proof film, strapped with steel band; mill tag with grade, heat, zinc class, polymer type, RAL number and number of sheets.
Grade equivalents
| GOST | GB (China) | ASTM | EN | Note |
|---|---|---|---|---|
| St3sp / St3ps | Q235B | A36 | S235JR | Nearest equivalents. Q235B and S235JR specify impact toughness at +20 °C, GOST 14637 by category; A36 has a higher yield strength, 250 MPa. |
| 09G2S | Q355B (Q345B before 2018) | A572 Grade 50 | S355JR / S355J2 | Nearest equivalents by strength. The 09G2S category for impact toughness at −40 or −70 °C is specified separately; Q355B is tested at +20 °C. |
| 08ps | DC01 | A1008 CS Type B | DC01 | SPCC to JIS G3141 is the same class of general-purpose cold-rolled low-carbon steel. |
| 08ps to GOST 14918 | DX51D+Z | A653 CS Type B | DX51D+Z | The DX51D+Z designation in GB/T 2518 matches EN 10346. Zinc coating weight (Z100–Z275) is specified separately from the grade. |
| GOST 34180 based on 08ps | TDC51D+Z | A755 based on A653 | DX51D+Z to EN 10169 | The grade describes the steel substrate and the zinc. Type and thickness of the polymer layer, RAL colour and environment class are set by the specification. |
| 08Kh18N10 | 06Cr19Ni10 | 304 | 1.4301 (X5CrNi18-10) | 12Kh18N10T is the equivalent of titanium-stabilised grade 321, not of 304. |
| 03Kh18N11 | 022Cr19Ni10 | 304L | 1.4307 (X2CrNi18-9) | Low-carbon version of 304 (carbon up to 0.03 %) for welded structures without subsequent heat treatment. |
| 03Kh17N14M3 | 022Cr17Ni12Mo2 | 316L | 1.4404 (X2CrNiMo17-12-2) | Molybdenum 2–3 % to ASTM A240. Mills in China certify to ASTM or EN; the GOST grade is entered in the MTC on request as an equivalent. |
Equivalents are the closest match, not identical: chemistry and tolerances differ between standards. The exact grade and standard are written into the contract.
